Waltco Liftgate C Series

WLGCS
WLGCS Waltco Liftgate Waltco Liftgate

The original tuck under liftgate for hassle-free deliveries. Available in 2,000 lb. lifting capacity.

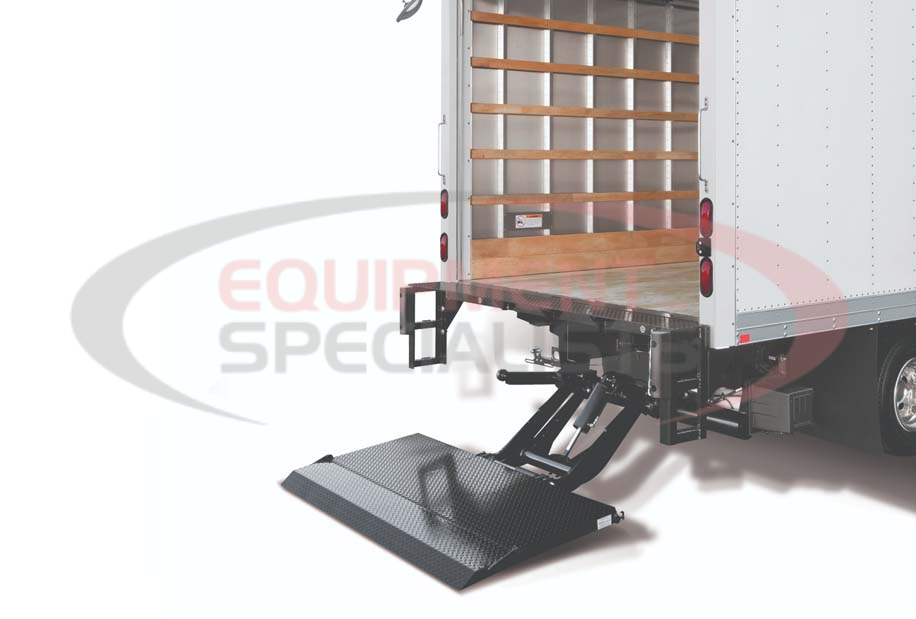

Flipaway liftgates are welded to the frame of the vehicle chassis. The loading platform is designed with two folding sections. In the stored or travel position, the platform is folded and stored beneath the body floor, allowing access to the cargo area without activating the lift.

Please contact us for more information about this product.

Request a Quote


Share this product:

Waltco C Series Specifications


  • Structural steel construction with zinc prime & powder coated finish
  • interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
  • Interior height is 72″ high
  • Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
  • Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
  • Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
  • Rear corner posts are constructed of 7GA steel
  • Roofs are constructed of 12GA steel with a 6″ peak
  • Lockable security-style doors with 3″ x 3″ supports
  • Standard 6″ steel ground rollers
