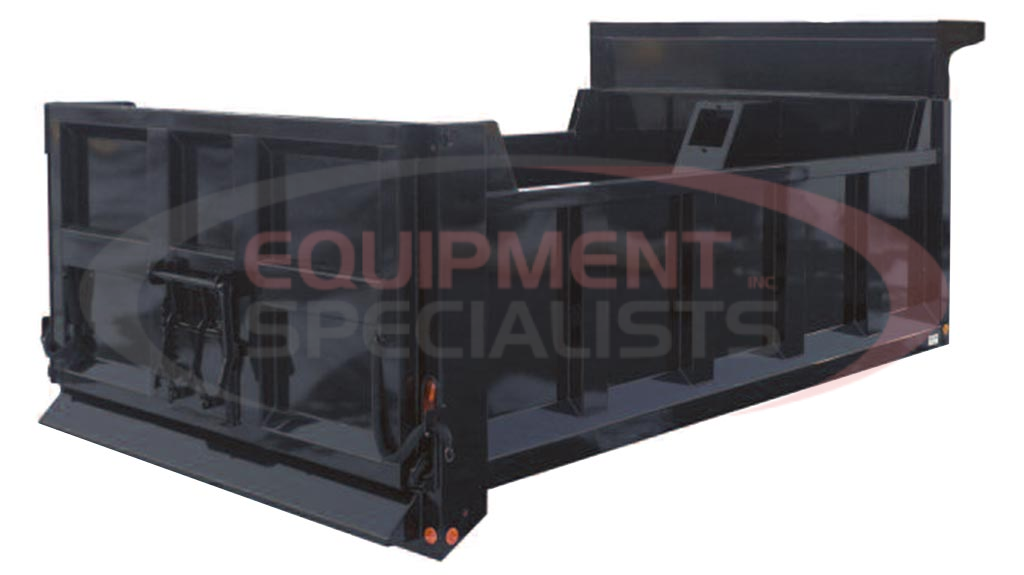

SH Truck Bodies Super Duty Dump

SH Truck Bodies Super Duty Dump

SHSDD

Please contact us for more information about this product.

Request a Quote

Terms and Conditions

Body Features

Length ( Tailgate adds 3" to overall length)*	10', 11', 12'
Weld-on bulkhead with mesh window	48", 54", & 60" high
Color	Primed and painted black (other colors available)
Cab Shield	18" with brackets for side boards ( various heights available)
Structural channel crossmembers 12" o.c.	4"
Rear posts	10" higher than sides with brackets for side boards (various heights available)
Floor	7 ga. steel
Standard overall width	96" outside, 86-1/2" inside
LED dump body light kit	includes marker and clearance lights and 1 stop/turn/tail-light per rear corner post with wiring harness, meets (FMVSS108)

Tailgate Features

Floor	7 ga. steel
Standard height	10" higher than sides
Frame	Fully boxed frame with two 10 ga. horizontal and two 10 ga. vertical braces
Dump Latch	Bottom has dump latch with release lever at driver's side
Rear Post	Standard with spreader chains and banjo eye chain holders on rear post
Top Pivot	Bolt-in pin style

Dump Hoists:

Electric
PTO

Load Tarps:

Manual
12V

Cab shield:

36"
48"

Spreader apron

Custom Sizes and configurations available

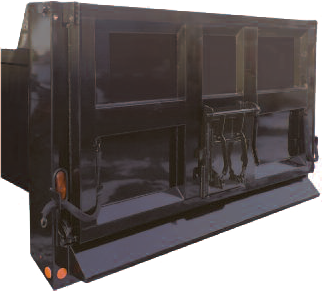

Metering Chute
12-3/8" x 13-1/2 tailgate metering chute

SH Body Length

11ft or 10ft or 12ft
