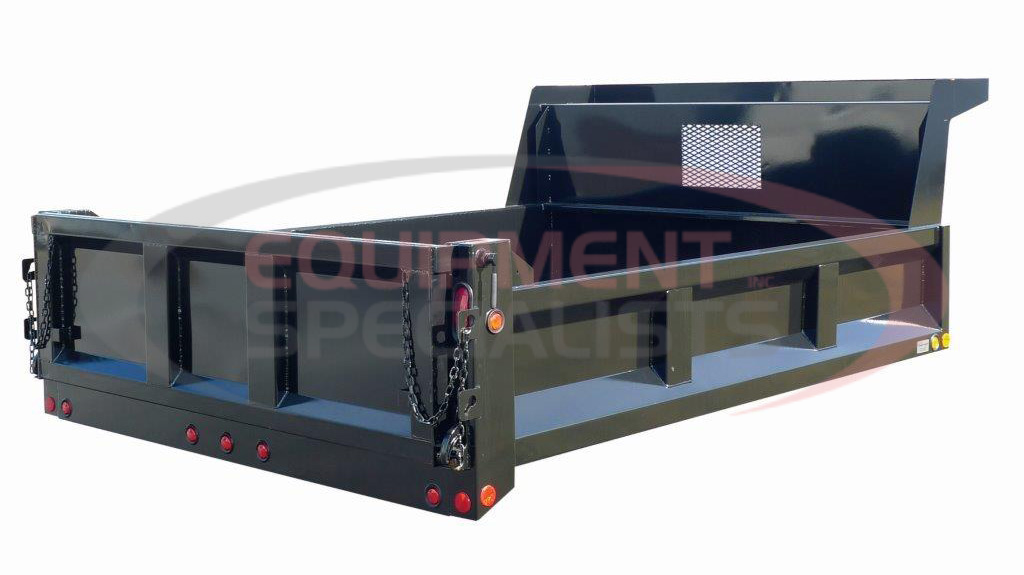

SH Truck Bodies Heavy Duty Mason Dump

SH Truck Bodies Heavy Duty Mason Dump

SHHDMD

Please contact us for more information about this product.

Request a Quote

Terms and Conditions

Body Features

Length ( Tailgate adds 3" to overall length)*	8' 6", 9', 9' 6", 10' 6", 11", 11'6", 12' 6"
Weld-on bulkhead with mesh window	48", 54", & 60" high
Color	Primed and painted black (other colors available)
Cab Shield	18" with brackets for side boards ( various heights available)
Structural channel crossmembers 12" o.c.	3"
Rear posts	6" higher than sides with brackets for side boards
Floor	10 ga. steel, formed with inner side wall
Pockets	3/16" Heavy duty exterior stake pockets with 3/8" x 3" rub rail on sides and rear
Standard overall width	96" outside, 86-3/4" inside
LED dump body light kit	includes marker and clearance lights and 1 stop/turn/tail-light per rear corner post with wiring harness, meets (FMVSS108)

Tailgate Features

Floor	10 ga. steel
Standard height	6" higher than sides
Frame	Fully boxed frame with two 12 ga. vertical posts
Fully double acting	Bottom release lever at driver's side, upper release is quick release screw pin style
Rear Post	Standard with spreader chains and banjo eye chain holders on rear post

Dump Hoists:

Electric
PTO

Load Tarps:

Manual
12V

Cab shield:

36"
48"

Tailgate metering chute:

7"
14"

Custom Sizes and configurations available

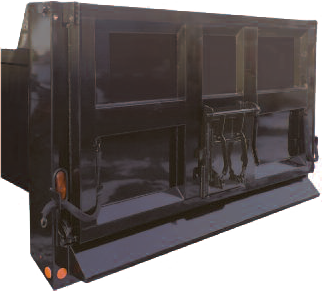

Metering Chute

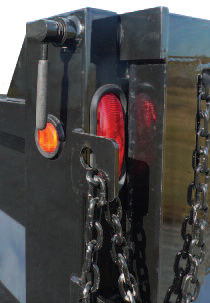

Screw pin top release

SH Body Length

12ft 6in or 8ft 6in or 9ft 6in or 10ft 6in or 11ft 6in or 9ft or 11ft
