MEYER SUPER BLADE PLOW

MEYSUPER
MEYSUPER Meyer Meyer

The all new commercial-grade Meyer® Super Blade™ is bigger and stronger than any other adjustable plow on the market. At the press of a button, it expands from 8’ to 10.5’, or anywhere in between. And the flared wings extend as a pair or independently. Super Blade features Nite Saber® LED lights, Hands-Free Plowing (HFP), industry leading ground clearance, and much more. Your plowing capabilities are now limitless.

Blade Widths: 8' to 10'
Fits: 3/4-ton Pickups and Larger
Moldboard: Tubular Steel

Please contact us for more information about this product.

Request a Quote


Share this product:

MEYER Plow Specifications



Part #:

53300

Blade Type:

Full-Trip

Moldboard Length:

8' to 10'

Moldboard Height:

32" to 36"

Moldboard Gauge:

12ga

Vertical Ribs:

9

Plow Trip Springs:

6

Cutting Edge:

1/2" x 6"

Avg Width at Full Angle:

87" to 111"

Angling Rams:

2" x 10"

Weight Complete:

1175 lbs

MEYER Plow Features

Extend Your Capabilities

The all new commercial-grade Meyer® Super Blade™ is bigger and stronger than any other adjustable plow on the market. At the press of a button, it expands from 8’ to 10.5’, or anywhere in between. And the flared wings extend as a pair or independently. Super Blade features Nite Saber® LED lights, Hands-Free Plowing (HFP), industry leading ground clearance, and much more. Your plowing capabilities are now limitless.

Performance

Biggest And Strongest Adjustable Plow

The Meyer Super Blade is the largest and strongest adjustable plow of its kind on the market. It features a full-trip moldboard, industry leading ground clearance, Nite Saber LED lights, a 32” high moldboard, 36” high outer adjustable flared wings and heavy-duty rams so you can take on the toughest plowing jobs.

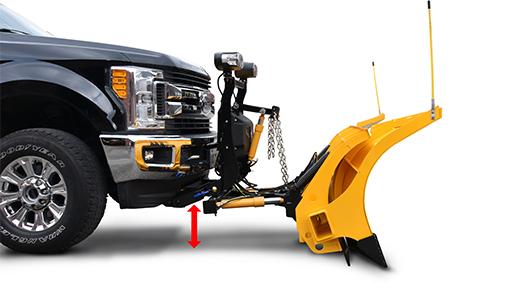

Industry Leading Ground Clearance

Adapt these three columns to fit your design need. To duplicate, delete or move columns, select the column and use the top icons to perform your action.

Exclusive Nite Saber LED Lights

To add a fourth column, reduce the size of these three columns using the right icon of each block. Then, duplicate one of the columns to create a new one as a copy.

Tallest Moldboard & Wings in Class

To add a fourth column, reduce the size of these three columns using the right icon of each block. Then, duplicate one of the columns to create a new one as a copy.

Heavy Duty Rams

Adapt these three columns to fit your design need. To duplicate, delete or move columns, select the column and use the top icons to perform your action.

Dura-Slick Paint with Teflon

To add a fourth column, reduce the size of these three columns using the right icon of each block. Then, duplicate one of the columns to create a new one as a copy.

Reliability

Engineered For Industry-Leading Reliability

Meyer is dedicated to bringing you products you know you can rely on. That’s why Super Blade is engineered and built with our Reliable Over-time Construction (ROC) system. ROC combines ongoing manufacturing improvements with state-of-the-art technology and stringent quality control procedures to deliver a more rugged and reliable product you and your business can count on. Plus the Super Blade is backed by a 5-year warranty, the longest and strongest in the industry.

5-Year America's Best Warranty

Meyer is proud to offer a full five-year warranty on complete plow systems with an online registration.  This industry-leading warranty means you can count on your Meyer plow to deliver reliable, profitable service for your business and your customers.

Encased Power Unit with Adjustable Drop Speed

The driving force behind every Meyer snow plow is a reliable and responsive hydraulic system. The Super Blade’s Standard Operating System has a streamlined appearance with an encased power unit and patented cable management system for reliable service. The hydraulic system also features an adjustable drop speed to handle various plowing conditions and meet operator preferences.

Pivot Bar with Heavy-Duty Center Support

The Super Blade features a tubular pivot bar, with a heavy-duty center support, running the entire length of the critical snow impact area of the blade to allow for added strength and reliability

Reinforced Flared Wings

The outer wings are reinforced with ribs to let you take on the toughest plowing jobs worry-free.

Slot & Tab Construction

To add strength and rigidity to all our plows, Meyer uses only slot and tab construction. This gives you a more robust, precise-fitting plow. Laser cut steel components are assembled using robotic welders for exacting consistency plow after plow. Our insistence on using only the best materials and methods allows us to offer the industry’s best warranty

Continuously Welded Ribs

Meyer is the only plow manufacturer to employ continuously-welded outside ribs on our plows. It’s ruggedness you can see. More importantly it increases the plow’s strength and performance, and your business’ performance, too.

Ease Of Use

On And Off, Fast And Easy

Keeping you on the job is Job One at Meyer.  We've manufactured the Super Blade to attach and detach in minutes with a simpler 2-plug electrical attachment. Once the Super Blade is detached, your vehicle will have an off-the- assembly line appearance.  And Meyer's free-standing jack stand allows you to adjust the Super Blade’s height on uneven or shifting surfaces, making on/off easy in any condition.

Swift & Simple Two-Piece Plug

The Super Blade simplifies electrical connection / disconnection with two-piece plug that is faster and easier than traditional three-plug connectors. Get connected and get on the road faster than ever.

Hands-Free Plowing

You're in total control thanks to the Meyer exclusive pistol grip controller.  It allows you to move the wings in and out, and stop at any point, with push-button simplicity.  It also features real-time diagnostics, a Hands-Free Plowing (HFP) mode that lets you use the shift lever to control the up/down movement of the bade, and double-click technology. All you have to do is double-click a button, and the moldboard will complete the move without you having to continue pressing the button.

System Diagnostics

When you're out plowing, issues arise. Quickly diagnosing problems is key to keeping your rig on the job. So, Meyer includes sophisticated system diagnostics on the back of our pistol grip controllers. By matching the controller's flashing light sequence to the chart on the back of the controller you can easily and accurately isolate the issue so you can resolve it and get back to work.

Field Adjustable Trip Springs

The Super Blade features six trip springs evenly spaced on the backside of the plow. Each can be quickly and easily adjusted wherever you are.  No need to stop working for a trip back to the shop. The Super Blade can be customized to accommodate up to eight springs.


  • Structural steel construction with zinc prime & powder coated finish
  • interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
  • Interior height is 72″ high
  • Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
  • Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
  • Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
  • Rear corner posts are constructed of 7GA steel
  • Roofs are constructed of 12GA steel with a 6″ peak
  • Lockable security-style doors with 3″ x 3″ supports
  • Standard 6″ steel ground rollers
