MEYER CROSS CONVEYOR DUMP TRUCK SPREADER

62729
62729 Meyer Meyer

Versatility For Four-Season Use - Equip your medium-duty (15,000 GVW and larger) dump truck to handle your year-round spreading needs. Whether you’re shouldering material, filling a ditch, patching asphalt or spreading sand on snow and ice (which requires an optional spinner attachment), the heavy-duty Cross Conveyor is an under tailgate system that can get the job done. The Meyer Cross Conveyor is the most efficient method of distributing granular or asphalt material on the market today. It mounts quickly and easily underneath your dump truck's tailgate for year-round sue. No matter what the job, this heavy-duty conveyor system performs like a workhorse while saving you labor, time and material.

Fits: Medium-duty dump trucks (15,000 GVW and larger)
Flow rate: 240 tons/hr.
Motor: Central hydraulics
Hopper Material: Carbon steel
Spreading Material: Asphalt, granular materials

Please contact us for more information about this product.

Request a Quote


Share this product:

MEYER Cross Conveyor Dump Truck Spreader Specifications

Get to know the Cross Conveyor dump truck tailgate spreader - Quick Facts:

Type: Dump truck tailgate

Vehicle: Medium-duty dump trucks (15,000 GVW and larger)

Width: 102 inches

Flow rate: 240 tons/hr.

Materials: Asphalt, granular materials

Motor: Central hydraulics

Construction: Carbon steel


Part #:

62729

Hopper Width:

96"

Hopper Depth:

Hopper Height:

12"

Total Height:

32"

Spread Width (min-max):

Empty Weight:

1100 lbs

Max Capacity Load:

27 cu. ft.

Max Capacity Weight:

2500 lbs

Spreading Material:
Free Flowing Material
Warranty:

1 year

Hopper Material:

Steel

Spinner Diameter:

18"

Spinner Material:

Poly

Tire Diameter:

Frame Material:

MEYER Cross Conveyor Dump Truck Spreader Features

Versatility For Four-Season Use

Equip your medium-duty (15,000 GVW and larger) dump truck to handle your year-round spreading needs. Whether you’re shouldering material, filling a ditch, patching asphalt or spreading sand on snow and ice (which requires an optional spinner attachment), the heavy-duty Cross Conveyor is an under tailgate system that can get the job done.

Performance

Efficient Performance

The Meyer Cross Conveyor is the most efficient method of distributing granular or asphalt material on the market today. It mounts quickly and easily underneath your dump truck's tailgate for year-round sue. No matter what the job, this heavy-duty conveyor system performs like a workhorse while saving you labor, time and material.

Cross Conveyor Includes High-Performing Features:

Screw-type gate jacks that allow material output adjustment when loaded.

A standard 24-inch extension that can be mounted on either side for optimal material.

An optional spinner attachment is available for snow and ice control.

An optional four-foot motorized conveyor extension to give you extra reach.

Reliability

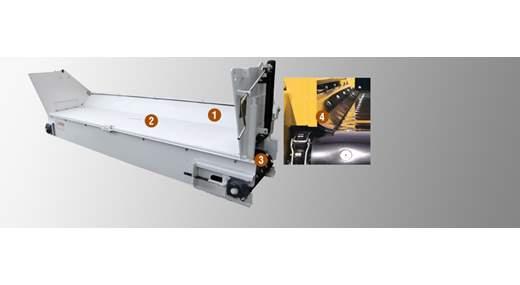

Reliable Performance When The Pressure Is On

When you’re on the job, time is money and unreliable equipment is just unacceptable. That’s why we designed and built the Cross Conveyor in ways that enhance reliable performance. These include:

  1. Powder-coated paint for greater durability over the life of your spreader.

  2. Hinged-top cover protects spreader during normal dump body operations and makes dump truck functional during non-spreading operations.

  3. High temperature, belt-over chain conveyor to make the dump truck functional during non-spreading activities.

  4. Replaceable rubber chain shields run the full length of the trough, minimizing material buildup in the conveyor chain.

Ease Of Use

Built With Operator Convenience In Mind

Good work truck equipment expands a vehicle’s utility and makes you more money. But with crew turnover and pressure to get to the next job faster, attachments need to be easy to use and easy to attach or detach.

Designed For Optimal Convenience & Ease-Of-Use:

Unit mounts below the dump body to allow normal dump body operations when spreader is not in use which saves time by eliminating in-season installations and maximizes year-round equipment investment.


Driver and passenger side feed gates allow material to be discharged from either side (only with optional spinner attachment) and the quick detaching 24-inch extension can be removed easily without any tools.


  • Structural steel construction with zinc prime & powder coated finish
  • interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
  • Interior height is 72″ high
  • Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
  • Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
  • Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
  • Rear corner posts are constructed of 7GA steel
  • Roofs are constructed of 12GA steel with a 6″ peak
  • Lockable security-style doors with 3″ x 3″ supports
  • Standard 6″ steel ground rollers
