  3. DURAMAG S-SERIES SERVICE BODY

DURAMAG S-SERIES SERVICE BODY

DURASBS
DURASBS Duramag Duramag

The DuraMag® Service Body is designed for continuous hard work with full length, heavy duty, long sills. What separates this body from the competition is the understructure; the difference is stunning. The general body construction is fully welded—never riveted or screwed together. Our proprietary door extrusions, coupled with compression latches and automotive bulb seals, produce the most watertight compartments available. The black polymer door latches are rivet-less for additional protection. All vertical compartments incorporate nitrogen struts to optimize performance in cold environments.

All DuraMag® bodies are fully powder coated. All lights are factory wired and installed.

Please contact us for more information about this product.

Request a Quote
Terms and Conditions
Share this product:

DURAMAG S-SERIES SERVICE BODY Specifications

Shortbed - 7' specs

*Choose your vehicle make



Single Rear Wheel - 8.5' Specs

*Choose your vehicle make

ModelSB-S-37D-STD-SRW
DuraMag Aluminum Weight (lbs)582 lbs
Competition Steel Weight (lbs)874 lbs
% Lighter than Steel33 %
Cab to Axle37"
A53-3/16"
B27-9/16"
C81-1/4"
Compartment Door Frame Opening Clearance
DE
48-1/16" x 15-3/16"20-3/16" x 32-15/16"
ModelSB-S-40F-STD-SRW
DuraMag Aluminum Weight (lbs)665 lbs
Competition Steel Weight (lbs)964 lbs
% Lighter than Steel31 %
Cab to Axle40"
A61-15/16"
B27-9/16"
C90"
Compartment Door Frame Opening Clearance
DE
56-11/16" X 15-3/16"20-3/16" x 32-15/16"



ModelSB-S-42F17-STD-SRW
DuraMag Aluminum Weight (lbs)665 lbs
Competition Steel Weight (lbs)964 lbs
% Lighter than Steel31 %
Cab to Axle40"
A61-15/16"
B27-9/16"
C90"
Compartment Door Frame Opening Clearance
DE
56-11/16" X 15-3/16"20-3/16" x 32-15/16"
ModelSB-S-42G-STD-SRW
DuraMag Aluminum Weight (lbs)670 lbs
Competition Steel Weight (lbs)1,009 lbs
% Lighter than Steel34 %
Cab to Axle42"
A61-15/16"
B27-9/16"
C90"
Compartment Door Frame Opening Clearance
DE
56-11/16" X 15-3/16"20-3/16" x 32-15/16"

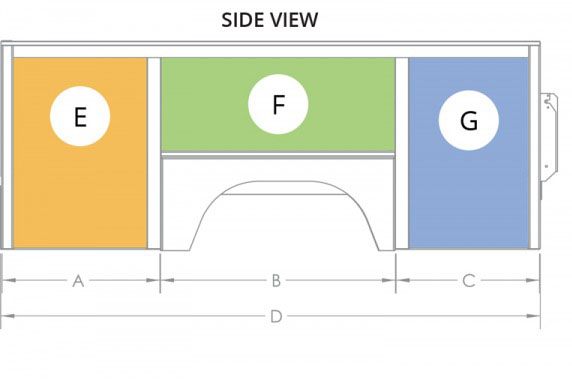

ModelSB-S-56D-STD-SRW
DuraMag Aluminum Weight (lbs)811 lbs
Competition Steel Weight (lbs)1,111 lbs
% Lighter than Steel37 %
Cab to Axle56"
A28-3/4"
B43-1/2"
C26"
D104"
Compartment Door Frame Opening Clearance
EFG
22-15/16" x 32-15/16"42-3/16" x 15-3/16"20-3/16" x 32-15/16"

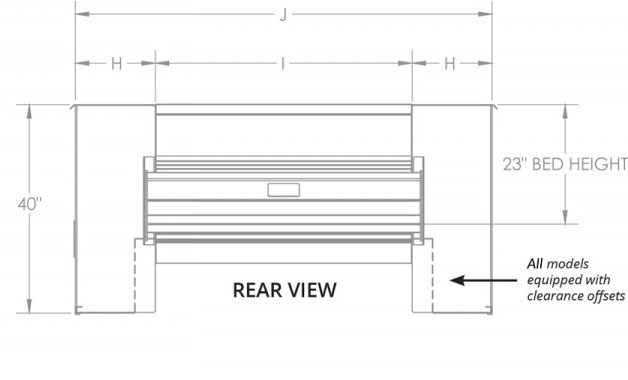

H15-1/2"
I49"
J80"
ModelSB-S-56F-STD-SRW
DuraMag Aluminum Weight (lbs)811 lbs
Competition Steel Weight (lbs)1,111 lbs
% Lighter than Steel37 %
Cab to Axle56"
A28-3/4"
B43-1/2"
C26"
D104"
Compartment Door Frame Opening Clearance
EFG
22-15/16" x 32-15/16"42-3/16" x 15-3/16"20-3/16" x 32-15/16"
H15-1/2"
I49"
J80"



ModelSB-S-56F17-STD-SRW
DuraMag Aluminum Weight (lbs)811 lbs
Competition Steel Weight (lbs)1,111 lbs
% Lighter than Steel37 %
Cab to Axle56"
A28-3/4"
B43-1/2"
C26"
D104"
Compartment Door Frame Opening Clearance
EFG
22-15/16" x 32-15/16"42-3/16" x 15-3/16"20-3/16" x 32-15/16"
H15-1/2"
I49"
J80"
ModelSB-S-56G-STD-SRW**
DuraMag Aluminum Weight (lbs)811 lbs
Competition Steel Weight (lbs)1,111 lbs
% Lighter than Steel37 %
Cab to Axle56"
A28-3/4"
B43-1/2"
C26"
D104"
Compartment Door Frame Opening Clearance
EFG
22-15/16" x 32-15/16"42-3/16" x 15-3/16"20-3/16" x 32-15/16"
H15-1/2"
I49"
J80"

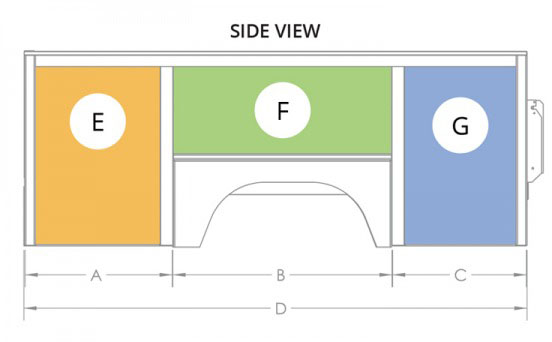

Dual Rear Wheel - 8.5' Specs

*Choose your vehicle make

ModelSB-S-56D-STD-DRW
DuraMag Aluminum Weight (lbs)895 lbs
Competition Steel Weight (lbs)1,288 lbs
% Lighter than Steel43 %
Cab to Axle56"
A28-3/4"
B43-1/2"
C26"
D104"
Compartment Door Frame Opening Clearance
EFG
22-15/16" x 32-15/16"42-3/16" x 15-3/16"20-3/16" x 32-15/16"
ModelSB-S-56F-STD-DRW
DuraMag Aluminum Weight (lbs)895 lbs
Competition Steel Weight (lbs)1,288 lbs
% Lighter than Steel43 %
Cab to Axle56"
A28-3/4"
B43-1/2"
C26"
D104"
Compartment Door Frame Opening Clearance
EFG
22-15/16" x 32-15/16"42-3/16" x 15-3/16"20-3/16" x 32-15/16"



ModelSB-S-56F17-STD-DRW
DuraMag Aluminum Weight (lbs)895 lbs
Competition Steel Weight (lbs)1,288 lbs
% Lighter than Steel43 %
Cab to Axle56"
A28-3/4"
B43-1/2"
C26"
D104"
Compartment Door Frame Opening Clearance
EFG
22-15/16" x 32-15/16"42-3/16" x 15-3/16"20-3/16" x 32-15/16"
ModelSB-S-56G-STD-DRW
DuraMag Aluminum Weight (lbs)895 lbs
Competition Steel Weight (lbs)1,288 lbs
% Lighter than Steel43 %
Cab to Axle56"
A28-3/4"
B43-1/2"
C26"
D104"
Compartment Door Frame Opening Clearance
EFG
22-15/16" x 32-15/16"42-3/16" x 15-3/16"20-3/16" x 32-15/16"

DURAMAG S-SERIES SERVICE BODY Features

 All aluminum (6000 series) understructure with extruded box tube

 Swing doors with nitrogen props on vertical compartments

 Extreme duty (6000 series) .625 interlocking extruded aluminum floor

 Welded fender flares for superior strength and rigidty

 Option colors available:
    • Black
    • Red GM/ Dodge red and Ford red

 3/16 - Smooth aluminum compartment tops and inner bed walls

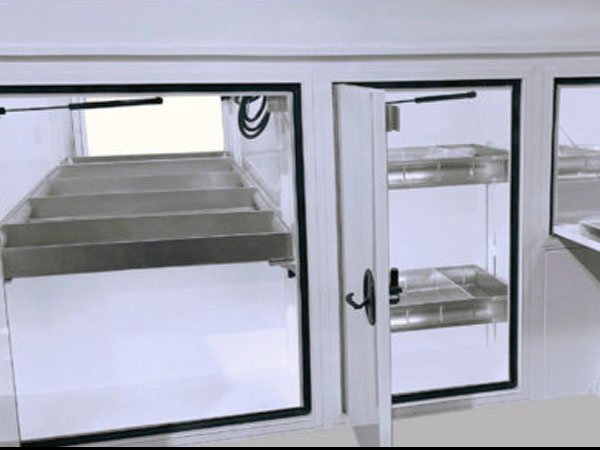

 Adjustable shelving in front, middle, and rear compartments (one shelf with dividers in each compartment)

 Strongest built aluminum service body in the industry

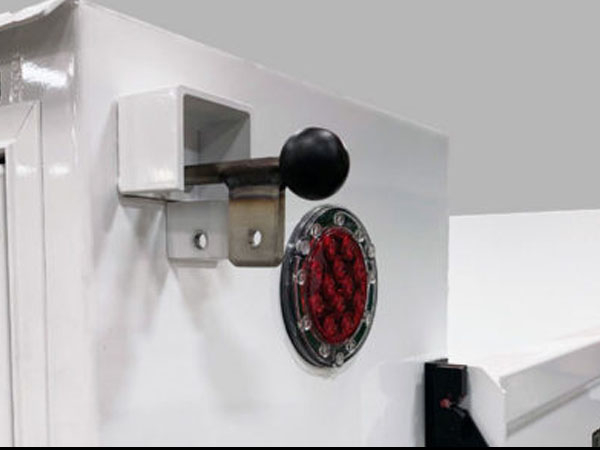

 Heavy slam latch tailgate with stainless steel lock rods

 Black polymer rivetless door handles

 Fully welded construction - No rivets, screws, or bolts to come loose

 Powder coated - standard: white

 LED marker lights (where required)

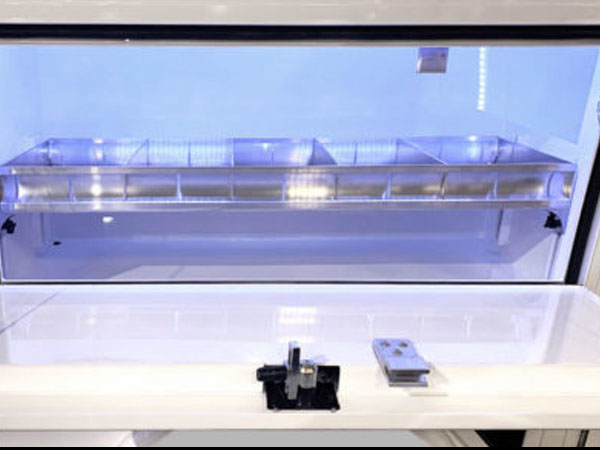

 LED penny light in each compartment

 LED ultra-thin 6" round stop/turn/tail/backup body lights

 Continuous aluminum piano door hinge

 Pass-through panel between front & center compartments

 Tread plate splash guards on front wall - all models

 Best 10 year warranty in the industry


                                    • Structural steel construction with zinc prime & powder coated finish
                                    • interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
                                    • Interior height is 72″ high
                                    • Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
                                    • Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
                                    • Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
                                    • Rear corner posts are constructed of 7GA steel
                                    • Roofs are constructed of 12GA steel with a 6″ peak
                                    • Lockable security-style doors with 3″ x 3″ supports
                                    • Standard 6″ steel ground rollers
