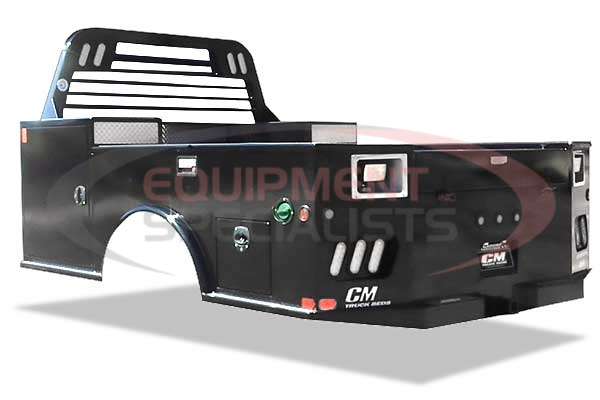

CM Truck Beds TM/TMX Steel Tradesmen

CMTMX CM Truck Beds CM Truck Beds

The TM and TMX are America’s ultimate Towing-Style utility bodies, with smart, ready-to-work features including 6 lockable toolboxes, best-in-class-rated gooseneck and bumper pull hitches, and an integrated steel tube headache rack. Whether you’re seeking a bed for a single- or dual-wheel chassis, CM has you covered.

Please contact us for more information about this product.

Request a Quote

Share this product:

TM/TMX Steel Tradesmen Body Specifications

Lengths7', 8' 6", 9' 4", 11' 4"
Headache RackSteel tube
Deck1/8" Treadplate
Frame Rails4" Structural channel steel
Crossmembers3" x 3/16" channel
Rear SkirtSolid one piece with rear step
GN Hitch30K B&W hitch with welded ball
BP Hitch18,500 lb. B&W hitch with receiver tube
Side RailsN/A
Fuel FillAngled
12V Trailer Plug12V Round 7 pin in GN Box, Round 7 pin/ 4 way flat on rear
Rear LightingClear LED oval
Light Box (Rear Skirt)Steel
Marker LightingBullet DOT approved LED
ToolboxUtility box in front, top-open 3/4 length shovel box; low-profile chain box in rear
Toolbox HandleChrome T handle compression
Toolboxes (Special Sizes)(11' 4" Models only) 54" recessed front toolbox with suicide doors, no chain box
FendersSteel radius
SidestepsIn front of and behind fender
Tiedowns(4) 18" Airline track tiedowns, (4) attachment rings

TM/TMX Steel Tradesmen Body Features

 Steel tubing headache rack with "easy view" window grill

Designed with the best and strongest materials to keep you safe, our “easy view” window grill headache rack not only protects but provides ample room to see when backing up your vehicle.

  Super-durable powder-coat finish

CM Truck Beds coats our products with powder, rather than paint. We cover every crevice and corner, providing long-lasting protection and a superior finish and shine!

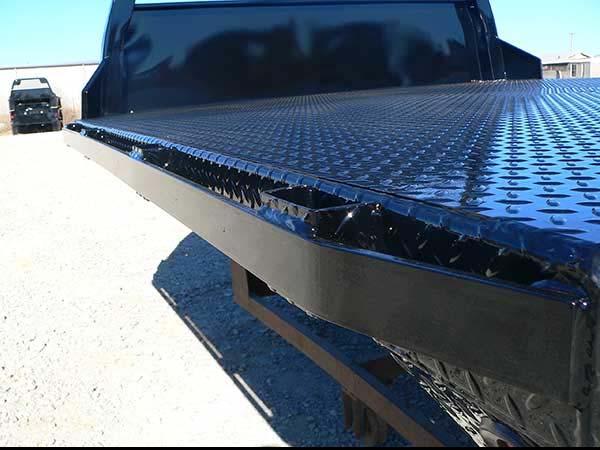

  1/8" steel treadplate deck

This strong and long-lasting deck is designed for heavy-duty work, withstanding the rigorous work conditions that our bodies are placed under. Compare to other bodies on the market, which use 11-gauge and 13-gauge floors.

 30,000 lb.-rated B&W gooseneck hitch with 7-way electrical plug

This is a best-in-class, independently tested gooseneck hitch that handles even your toughest hauls. It also contains a 7-way electrical plug to give you ample choices for your power-driven needs.

  3/4 length shovel box with top access flip-up door

Allows you to store your tools and equipment out of the elements, and easily access them on the job site.

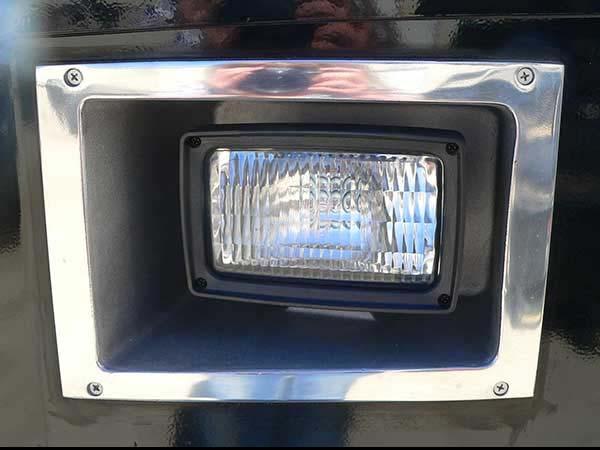

  LED cargo light with toggle switch

Provides lighting to be able to see your tools and equipment on the deck.

  Drop-down rear tailgate with center handle

Our heavy-duty rear tailgate has a secure seal that holds tight in transit, yet opens smoothly and stands up to years of hard use.

  Modular sealed wiring harness

Our modular sealed wiring harnesses are resistant to corrosion, deterioration and pulling apart, meaning they can withstand the harshest conditions.

  7-way round and 5-way flat electrical plug standard on rear tailboard

This standard feature provides quality results and allows you to hook on to any trailer.

  18,500 lb.-rated B&W bumper pull hitch

CM’s independently rated bumper pull hitch gives you best-in-class towing capacity, which is integrated into the entire frame.

  3" Steel roll-formed 3/16" channel crossmembers

These are the toughest most durable work truck subframes.

  4" structural steel channel frame rails

Our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.

 2 - LED recessed tail brake and backup lights mounted in headache rack

CM’s lights are brighter and use less power than conventional incandescent lights, so your stops, turns, and tag lights will be easily seen and recognized.

  6 Lockable toolboxes (3 on each side) featuring T-handle compression latches

Our recessed tool box doors provide maximum safety in our large boxes to prevent weathering of your tools and equipment. For security, the dual latches lock with a key and padlock loop when desired.

  Aluminum treadplate trim package

An added element of head-turning shine.

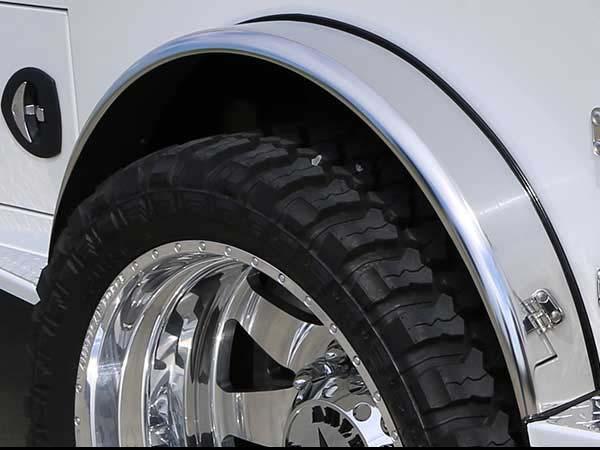

  Full length side skirt with stainless fenders and aluminum treadplate trim

A one-piece, non-exposed seam skirt that provides less corrosion and oxidation.

  Angled fuel fill

Provides a shinier, and better-looking feature to your work truck, as well as a no-corrosion zone for all your in-and-out hauls.

2-Megabox toolboxes (one per side)

Store more with CM’s unique MegaBox toolboxes. At 54″ wide, with easy-access suicide doors, our MegaBox toolboxes hold all your essentials — and more! This feature is available only on 11’4″ models.
CM Body Length 7ft or 8ft 6in or 9ft 4in or 11ft 4in
