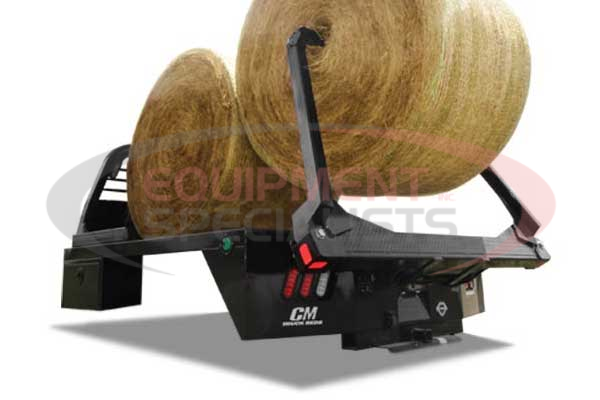

CM Truck Beds SZ Steel Hay Squeeze

CMSZ

Load and unload hay from the comfort of your cab with the SZ’s best-in-class dual hydraulic lifting cylinders and 4-directional remote control, plus dual round bale capacity.

Please contact us for more information about this product.

Request a Quote

Terms and Conditions

Lengths	8' 6", 9' 4", 11' 4"
Headache Rack	Steel tube
Deck	1/8" Treadplate
Frame Rails	4" Structural channel steel
Crossmembers	3" x 3/16" channel
Rear Skirt	Solid one piece with rear step
GN Hitch	30K B&W hitch with welded ball
BP Hitch	18,500 lb. B&W hitch with receiver tube
Side Rails	Tube
Fuel Fill	Angled
12V Trailer Plug	12V Round 7 pin in GN Box, Round 7 pin/ 4 way flat on rear
Rear Lighting	Clear LED oval
Light Box (Rear Skirt)	Steel
Marker Lighting	Bullet DOT approved LED
Toolbox	One standard in front on R/S
Toolbox Handle	Black T-handle compression
Fenders	N/A
Sidesteps	N/A
Tiedowns	(4) 24" Airline track tiedowns, (4) attachment rings

Integrated tube headache rack

Our headache racks are designed with the best and strongest materials to keep you safe when the unexpected happens.

3" Steel roll-formed 3/16" channel crossmembers

These are the toughest and most durable work truck subframes.

Integrated hydraulic pump system

Our pump system is integrated into the body, making our squeeze bed one of the sleekest in the business. Additionally, fluid is easily accessibly in our recessed hydraulic fluid reservoir.

Two doors easy access panels for hydraulics

Let’s face it, hydraulic systems sometimes need work. CM Truck Beds gives you the best access of any in the industry to work on your squeeze beds.

Dual spinner for efficient feeding

We didn’t design our bed to lift, we designed it to work. The SZ model gives you the ability to ride the ranch and feed while never leaving the comfort of the driver’s seat. Our dual spinner system is easy to operate while allowing the hay to spin freely.

Dual cylinder operation

Many squeeze beds use just one cylinder, limiting lifting capacity and causing issues when cylinders or hydraulic systems fail. With the SZ model, you always have a backup. Furthermore, our lifting capacity is better than any in the business.

Standard LED lighting

Safety and maintenance matter at CM Truck Beds, so we use LED lights on all of our bodies which are brighter and require less maintenance than any on the market today.

1/8" Steel treadplate deck

This strong and long-lasting deck is designed for heavy-duty work, withstanding the rigorous work conditions that our bodies are placed under. Compare to other bodies on the market, which use 11-gauge and 13-gauge floors.

30,000 lb.-rated B&W gooseneck hitch with 7-way electrical plug

This is a best-in-class, independently tested gooseneck hitch that handles even your toughest hauls. It also contains a 7-way electrical plug to give you ample choices for your power-driven needs.

18,500 lb.-rated B&W bumper pull hitch

CM’s independently rated bumper pull hitch gives you best-in-class towing capacity, which is integrated into the entire frame.

Premium TGIC polyester powder coat finish- Super-durable powder-coat finish

CM Truck Beds coats our products with powder, rather than paint. We cover every crevice and corner, providing long-lasting protection and a superior finish and shine!

4" Structural steel channel frame rails

Our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.

7-way round and 5-way flat electrical plug standard on rear tailboard

This standard feature provides quality results and allows you to hook on to any trailer.

2-LED recessed tail, brake and backup lights mounted in headache rack

CM’s lights are brighter and use less power than conventional incandescent lights, so your stops, turns, and tag lights will be easily seen and recognized.

LED DOT required lighting (clearance and marker lights)

When you are backing up, turning, or hitting your brakes along the road, our LED lights will make your truck bed stand out more.

Angled fuel fill

Provides a shinier, and better-looking feature to your work truck, as well as a no-corrosion zone for all your in-and-out hauls.

Modular sealed wiring harness

Our modular sealed wiring harnesses are resistant to corrosion, deterioration and pulling apart, meaning they can withstand the harshest conditions.

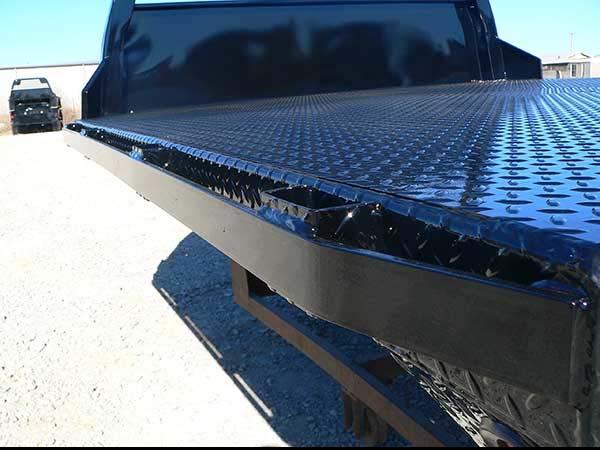

3/16" Deck

CM’s best-in-class 3/16” deck is a heavier duty deck that allows users to haul more weight. Providing higher weight capacity, this available option has the best quality results for your serious hauls.

Cargo Light

This option provides truck bed lighting so users can see their tools and equipment on the deck. When your oilfield or construction job runs long into the night, trust in CM Truck Beds.

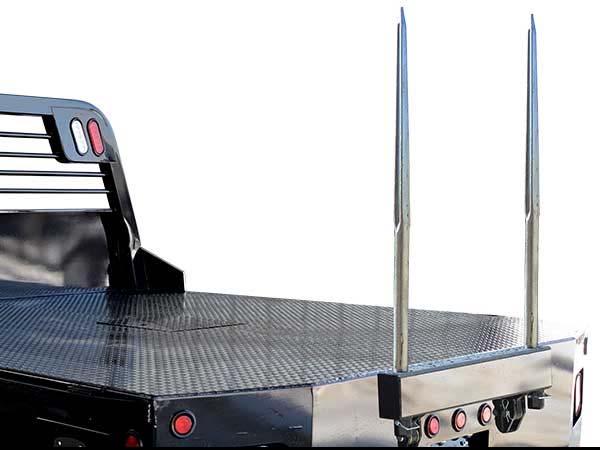

Bail Spike

Our CM Bail Spike allows users to haul bales of hay. This CM Truck Bed option is hydraulically operated and makes hauling hay simpler and quicker.

30,000lb B&W Turnover Ball

The CM Truck Bed 30,000 lb. B&W Turnover Ball option gives users a heavier weight rating and flexibility to haul 5th wheel. This option also allows users to switch back and forth from gooseneck to 5th wheel positions.

Front Underbody Toolbox

CM offers a durable, quality front underbody toolbox to help with all your hauling needs. This option offers a sense of storage and security when you're on the road with your CM Truck Bed.

Gooseneck Tough

CM's gooseneck trough allows users to easily back under a gooseneck without causing damage to their truck body.

Rolling Tailboard

This option offers CM Truck Bed customers lower rear deck height.

Drop In Side Rails

CM’s drop-in side rails provide protection against damage from shifting cargo or equipment. With this option, your work truck will stay in better condition longer.

Rear Rub Rail

The CM Truck Bed rear rub rail option provides versatile tiedown points, allowing for safety and security of equipment while hauling.

Color Primer Only

CM’s color primer option is a great way to keep your hauler body in good shape and in style. Our primer will prevent rust and corrosion developing on your truck body and give customers a peace of mind to travel off-road or on untreated roads.

Fold Down Side Rails

CM Truck Beds now offers fold down side rails on all units with rub-rail. This best-in-class option features tube construction with dual hinge attachment and a spring loaded latch located at the front gusset. These side rails come standard with (4) four adjustable airline track tie-downs complete with a bull ring rated at 5,000 lbs per track. Most impressively, this option can be offered at the time of manufacturing or as an easy bolt-on option to be installed at the distribution location. Once installed, our industry leading hinges have a removable pin, making this the most versatile removable side rail in the industry today.

Wood Flooring

Lumber is the most economical and affordable decking solution for end users, and provides a durable, yet easy-to-replace decking option, while still maintaining an entry-level price point. CM Truck Beds uses 2" pine wood flooring.

Blackwood Flooring

Blackwood decking uses an innovative rubber-infused lumber to provide improved durability, stain-resistance and traction, even in wet conditions. With the tactile surface of Blackwood, your cargo is less likely to shift in transit. The industrial-grade rubber used in Blackwood is the same material used at gun ranges to absorb bullets — so you know it's tough!

Rumber Wood Flooring

Rumber wood is environmentally friendly, stronger than other composites, and impervious to fluids, mud, oil and UV rays. Rumber boards will not crack, rot or split and they have a traction surface that increases safety. They can be cut with a saw, are easily installed, and are easy to clean.
