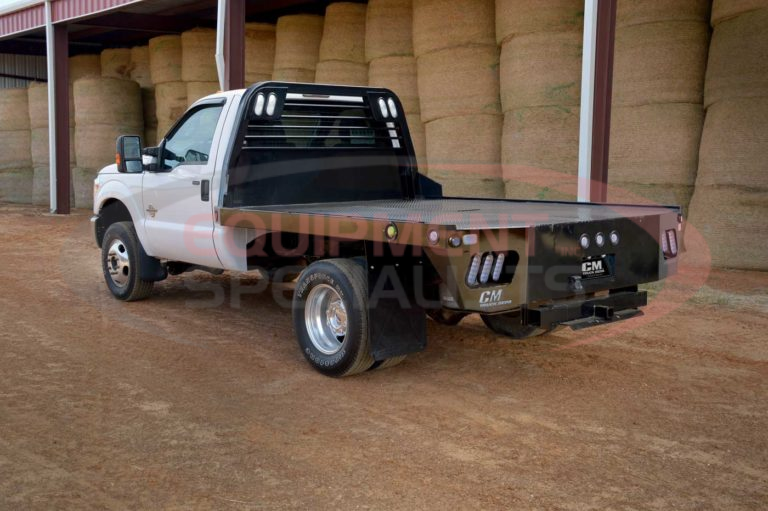

CM Truck Beds SS Steel Flat Deck Body

CMSS CM Truck Beds CM Truck Beds

The sleek SS—CM’s price-leading model—comes equipped with a best-in-class tubular steel headache rack, smooth side rails, and a solid one-piece rear skirt.

Please contact us for more information about this product.

Request a Quote

Share this product:

SS Steel Flat Deck Body Specifications

Lengths7', 8' 6", 9' 4", 11' 4"
Headache RackSteel tube
Deck1/8" Treadplate
Frame Rails4" Structural channel steel
Crossmembers3" x 3/16" channel
Rear SkirtSolid one piece with tapered corners
GN Hitch30K B&W hitch with welded ball
BP Hitch18,500 lb. B&W hitch with receiver tube
Side RailsIntegrated with internal stake pockets
Fuel FillAngled
12V Trailer Plug12V Round 7 pin in GN Box, Round 7 pin/ 4 way flat on rear
Rear LightingClear LED oval
Light Box (Rear Skirt)Steel
Marker LightingBullet DOT approved LED
ToolboxOptional under body
Toolbox HandleN/A

SS Steel Flat Deck Body Features

 Integrated tube headache rack

Our headache racks are designed with the best and strongest materials to keep you safe when the unexpected happens.

 3" Steel roll-formed 3/16" channel crossmembers

These are the toughest and most durable work truck subframes.

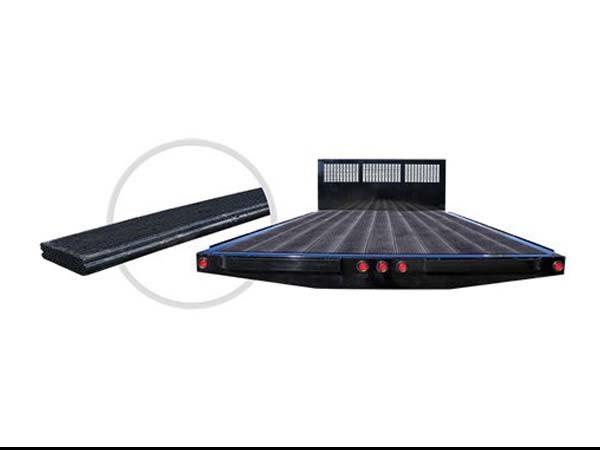

  1/8" steel treadplate deck

This strong and long-lasting deck is designed for heavy-duty work, withstanding the rigorous work conditions that our bodies are placed under. Compare to other bodies on the market, which use 11-gauge and 13-gauge floors.

 30,000 lb.-rated B&W gooseneck hitch with 7-way electrical plug

This is a best-in-class, independently tested gooseneck hitch that handles even your toughest hauls. It also contains a 7-way electrical plug to give you ample choices for your power-driven needs.

  Formed side rails with stake pockets

These accommodate your straps and give you multiple tie-down points throughout your hauling jobs.

  Modular sealed wiring harness

Our modular sealed wiring harnesses are resistant to corrosion, deterioration and pulling apart, meaning they can withstand the harshest conditions.

  18,500 lb.-rated B&W bumper pull hitch

CM’s independently rated bumper pull hitch gives you best-in-class towing capacity, which is integrated into the entire frame.

  Super-durable powder-coat finish

CM Truck Beds coats our products with powder, rather than paint. We cover every crevice and corner, providing long-lasting protection and a superior finish and shine!

  4" structural steel channel frame rails

Our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.

  7-way round and 5-way flat electrical plug standard on rear tailboard

This standard feature provides quality results and allows you to hook on to any trailer.

 2 - LED recessed tail brake and backup lights mounted in headache rack

CM’s lights are brighter and use less power than conventional incandescent lights, so your stops, turns, and tag lights will be easily seen and recognized.

  LED DOT required lighting (clearance and marker lights)

When you are backing up, turning, or hitting your brakes along the road, our LED lights will make your truck bed stand out more.

  Angled fuel fill

Provides a shinier, and better-looking feature to your work truck, as well as a no-corrosion zone for all your in-and-out hauls.
CM Body Length 7ft or 8ft 6in or 9ft 4in or 11ft 4in
