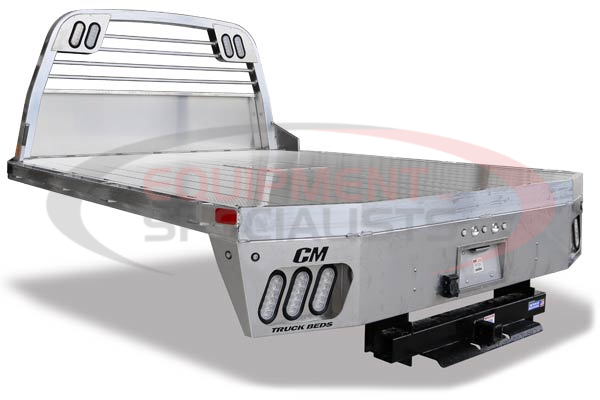

CM Truck Beds AL RD Aluminum Flat Deck

CMALRD CM Truck Beds CM Truck Beds

Tough enough to haul the big loads, the popular RD models are expertly designed, professional-grade workhorses that are sized to fit almost any unit.

Please contact us for more information about this product.

Request a Quote

Share this product:

CM Truck Beds AL RD Aluminum Flat Deck Specifications

Lengths7', 8' 6", 9' 4", 11' 4"
Headache RackAluminum tube
DeckExtruded aluminum floor
Frame Rails4" Structural channel steel
Crossmembers3" Steel channel
Rear SkirtSolid one piece with tapered corners
GN Hitch30K B&W hitch with welded ball
BP Hitch18,500 lb. B&W hitch with receiver tube
Side Rails3/8"x2" Aluminum extrusion with stake pockets
Fuel FillAngled (cast aluminum)
12V Trailer Plug12V Round 7 pin in GN Box, Round 7 pin/ 4 way flat on rear
Rear LightingClear LED oval
Light Box (Rear Skirt)Aluminum
Marker LightingBullet DOT approved LED
ToolboxOptional underbody

CM Truck Beds AL RD Aluminum Flat Deck Features

 2 - LED recessed tail brake and backup lights mounted in headache rack

CM’s lights are brighter and use less power than conventional incandescent lights, so your stops, turns, and tag lights will be easily seen and recognized.

  Angled aluminum fuel fill

Provides a shinier, and better-looking feature to your work truck, as well as a no-corrosion zone for all your in-and-out hauls.

  4" structural steel channel frame rails

Our 4″ structural channel frame rails are stronger, more durable, and prevent any rusting from the interior of the tube.

  3" steel roll-formed 3/16" channel cross

These are the toughest, most durable subframe on work trucks.

  LED DOT required lighting (clearance and marker lights)

When you’re backing up, turning, or hitting the brakes along the road, our LED lights will make your truck bed stand out more and brighter! Our LED lights also use less power than conventional incandescent lights.

  18,500 lb.-rated B&W bumper pull hitch

CM’s independently rated bumper pull hitch gives you best-in-class towing capacity, which is integrated into the entire frame.

 Modular sealed wiring harness

Our modular sealed wiring harnesses are designed to reduce corrosion, pulling apart, and deterioration, meaning they will withstand whatever light or harsh conditions they’re placed under.

  7-way round and 5-way flat electrical plug standard on rear tailboard

This standard feature provides quality results and allows you to hook on to any trailer.

 30,000 lb.-rated B&W gooseneck hitch with 7-way electrical plug

This is a best-in-class, independently tested gooseneck hitch that handles even your toughest hauls. It also contains a 7-way electrical plug to give you ample choices for your power-driven needs.

  Extruded aluminum floor

Stronger and more durable aluminum floors that win out against the competition.

  3/8" rub rails and stake pockets

These features secure your straps and give you multiple tie-down points throughout your hauling jobs.

  4" steel channel frame rails

Our structural 4” channel frame rails are stronger, more durable, and prevent any rusting from the interior of the tube.

  Integrated tube headache rack

Our headache racks are designed with the best and strongest materials to keep you safe when the unexpected happens.

 Available Options:

Wood Flooring

Lumber is the most economical and affordable decking solution for end users, and provides a durable, yet easy-to-replace decking option, while still maintaining an entry-level price point. CM Truck Beds uses 2" pine wood flooring.

Blackwood Flooring

Blackwood decking uses an innovative rubber-infused lumber to provide improved durability, stain-resistance and traction, even in wet conditions. With the tactile surface of Blackwood, your cargo is less likely to shift in transit. The industrial-grade rubber used in Blackwood is the same material used at gun ranges to absorb bullets — so you know it's tough!

Rumber Wood Flooring

Rumber wood is environmentally friendly, stronger than other composites, and impervious to fluids, mud, oil and UV rays. Rumber boards will not crack, rot or split and they have a traction surface that increases safety. They can be cut with a saw, are easily installed, and are easy to clean.

Cargo Light

This option provides truck bed lighting so users can see their tools and equipment on the deck. When your oilfield or construction job runs long into the night, trust in CM Truck Beds.

Aluminum Underbody Toolbox

CM's durable aluminum underbody toolbox provides plenty of storage space and weather protection for equipment and tools, keeping your gear safe, organized and out of harm's way.

CM Body Length 7ft or 8ft 6in or 9ft 4in or 11ft 4in
