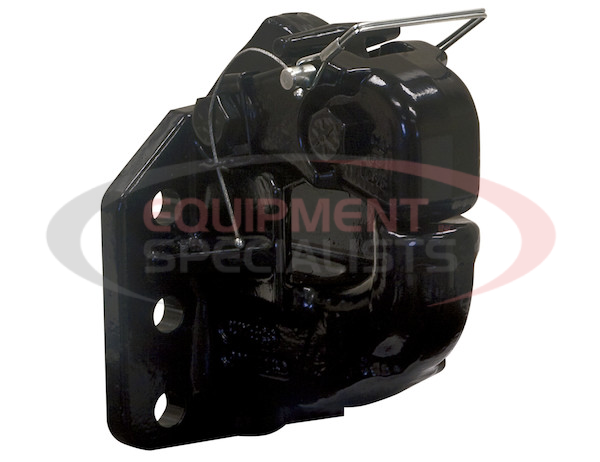

50 TON AIR COMPENSATED PINTLE HOOK (WITH CHAMBER AND PLUNGER)
PH50AC
Reduces wear and tear on towing parts by reducing slack and movement.
Makes for a more comfortable ride through shock absorption between the vehicle and trailer.
Extremely strong austempered ductile iron construction.
Durable corrosion-resistant powder-coated finish.
Great for on- or off-road use.
Spring-loaded pintle hook lock arm provides a secure hold on 2 -3/8 in. to 3 in. I.D lunette eyes.
Tows up to 100,000 lb.
The 50 Ton Air Compensated Pintle Hitch from Buyers Products cushions movement between the pintle hook and tow ring. This saves wear and tear on the parts, as well as improves stability, especially in sudden motion or braking situations.
The 6 hole mount, bolt-on pintle hook works in tandem with the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy-duty applications such as semi trailers, both off- and over-the-road. This product can also be used without the air chamber and plunger as a standard pintle hook. For off-road use, the load should be reduced by 25% and a swivel type trailer drawbar should be used.
Product Common Use: Heavy Duty Towing, Off-Road Towing, Semi Trailers, Pup Trailer Towing
Share this product:
- Structural steel construction with zinc prime & powder coated finish
- interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
- Interior height is 72″ high
- Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
- Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
- Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
- Rear corner posts are constructed of 7GA steel
- Roofs are constructed of 12GA steel with a 6″ peak
- Lockable security-style doors with 3″ x 3″ supports
- Standard 6″ steel ground rollers
