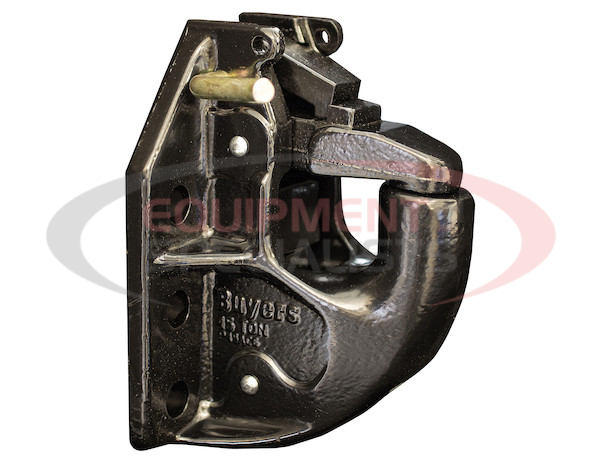

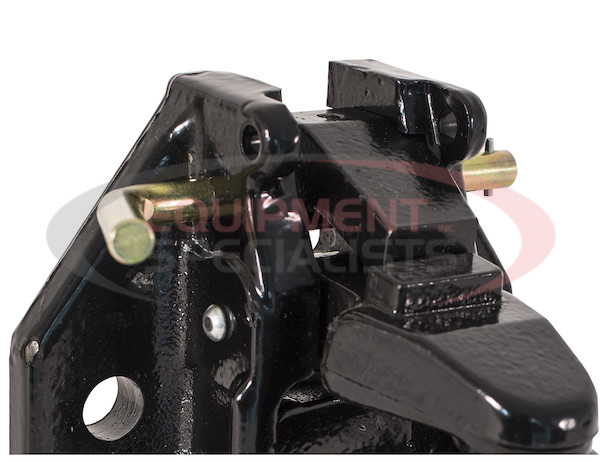

45 TON 6-HOLE AIR COMPENSATED PINTLE HOOK KIT WITH BRAKE CHAMBER BRACKET
P45AC6K
Reduces wear and tear on towing parts by reducing slack and movement.
Makes for a more comfortable ride through shock absorption between the vehicle and trailer.
Extremely strong austempered ductile iron construction.
Durable corrosion-resistant powder-coated finish.
Can be ordered as a kit with the required air brake chamber or separately.
Spring-loaded pintle hook lock arm provides a secure hold on 2-3/8 in. to 3 in. I.D lunette eyes and drawbars.
Tows up to 90,000 lb.
The 45 Ton Air Compensated Pintle Hitch with 6 Mounting Holes from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations.
The 6 hole mount, bolt-on pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation.
The hook is ideal for heavy-duty applications such as semi trailers, both off-road and over-the-road.
It requires an air brake chamber, which can be ordered together separately or as a kit.
Product Common Use: Heavy Duty Towing, Off-road Towing, Semi Trailers, Pup Trailer Towing
Share this product:
- Structural steel construction with zinc prime & powder coated finish
- interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
- Interior height is 72″ high
- Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
- Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
- Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
- Rear corner posts are constructed of 7GA steel
- Roofs are constructed of 12GA steel with a 6″ peak
- Lockable security-style doors with 3″ x 3″ supports
- Standard 6″ steel ground rollers
