SALTDOGG 2.5 CU YD GAS CONVEYOR CHAIN SPREADER

BUYGASCHMID
BUYGASCHMID Buyers Buyers

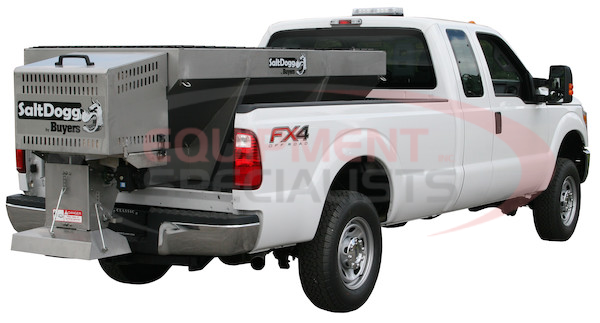

SaltDogg 2.5 Cubic Yard Gas Stainless Hopper Spreader gives contractors and businesses a gas-powered spreader ready for commercial applications using bulk salt, bulk sand, or a 50/50 salt/sand mix. Its 10 ft hopper fits an extended bed 1 ton truck. With electric start and in-cab throttle control, the spreader combines the power of a gas engine with modern spreader conveniences.

Product Common Use: Residential & Commercial Spreading, Property Maintenance, Parking Lots, Driveways

Capacity: 2.5 Cubic Yard
Fits: Dump Bodies and Flatbeds with a minimum 13,000 lb GVW (gross vehicle weight)
Material: Bulk Salt, Bulk Sand, 50/50 Salt/Sand Mix

Please contact us for more information about this product.

Request a Quote
Terms and Conditions
Share this product:

Gas Conveyor Chain Spreader for Midsize Vehicles

The spreader comes equipped with a 12V electric clutch and in-cab, 3 position momentary switch and throttle. It's powered by a 10-1/2 HP Briggs and Stratton Intek industrial/commercial engine with a battery for electric start. A heavy duty drive shaft and 1-1/8 in. sealed bearings are designed for long life. The high-torque conveyor gearbox has a 20:1 ratio with a 1 in. input shaft and 1-1/8 in. output shaft on tapered roller bearings to provide extra power on start up.

The hopper, which comes with a top screen and fully welded frame, is made from high quality 304 stainless steel for long lasting corrosion protection. It's equipped with a steel pintle chain conveyor and features a stainless steel inverted V to reduce stress on the drive line and improve flow. The high-flow conveyor is 12 in. wide with a stainless steel floor. An adjustable feed gate with friction lock offers additional material flow control.

A 12 in. poly spinner casts material 2 ft to 30 ft. The spreader is available with a regular or extended chute. Adjustable baffles allow you to adjust the spread pattern to match your use.

The SaltDogg 2.5 Cubic Yard Gas Stainless Hopper Spreader is comparable to Swenson PV and Henderson FSP.

SaltDogg 2.5 Cubic Yard

Standard Chute Model distributes spreading material from any dump body or flatbed truck.

  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedStandard
  • Controller TypeIn-Cab Throttle/Choke
  • Discharge PositionCenter
  • Drive TypeGas
  • Hopper Length120.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors1
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity2.50 yd³
  • Overall Height32.10 "
  • Overall Length139.70 "
  • Overall Width (At Top)47.00 "
  • Hopper Width47.00 "
  • Top ScreenYes
  • Drive Motor Horse Power10.50 HP
  • Vibrator Included?No
  • Spinner Diameter12.00 "
  • Spreading Width Range2 To 30 '
  • Gearbox Ratio20:1
  • System Voltage12 vdc
  • Feed MechanismConveyor Chain
  • Feed Mechanism212 in. Pintle Chain Conveyor

    • SaltDogg 2.5 Cubic Yard - Extended Chute

    The extended chute allows customers with a higher vehicle elevation to distribute materials closer to the ground.

  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedExtended
  • Controller TypeIn-Cab Throttle/Choke
  • Drive TypeGas
  • Hopper Length120.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors1
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity2.50 yd³
  • Overall Height32.10 "
  • Overall Length139.70 "
  • Overall Width (At Top)47.00 "
  • Hopper Width47.00 "
  • Top ScreenYes
  • Drive Motor Horse Power10.50 HP
  • Vibrator Included?No
  • Spinner Diameter12.00 "
  • Spreading Width Range2 To 30 '
  • Gearbox Ratio20:1
  • System Voltage12 vdc
  • Feed MechanismConveyor Chain
  • Feed Mechanism212 in. Pintle Chain Conveyor

    • Quality Construction

    Hopper and fully welded frame made of high quality 304 stainless steel for long lasting corrosion protection

    Prevent Damage

    Stainless steel inverted V improves flow and reduces stress on the drive line

    Reliable Operation

    10-1/2 HP Briggs and Stratton Intek industrial/commercial engine with a versatile 12 in. chain conveyor.

    Wide Broadcast

    12 in. poly spinner casts material 2 ft to 30 ft

    Spreading Material

    Handles bulk salt, bulk sand, or a 50/50 salt/sand mix

    Simple Controls

    Electric start and in-cab throttle control
