5-POSITION ADJUSTABLE EYE ASSEMBLY WITH 3 INCH CHANNEL - 6-TON

B18135
B18135 Buyers Buyers

Adds flexibility in tow eye height for leveling your trailer.
Strong cast iron eye and sturdy formed steel channel.
Can handle towing up to 12,000 lb.

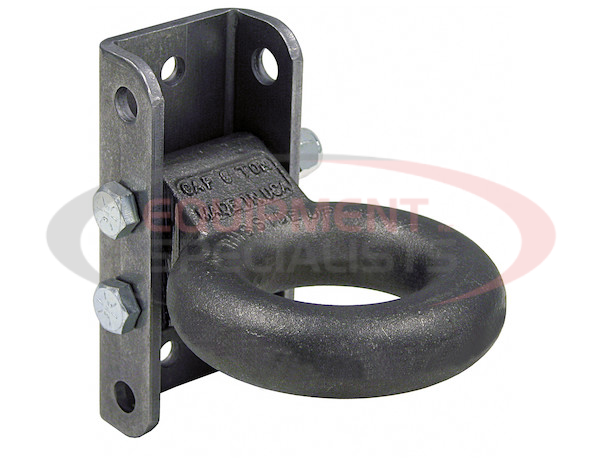

The Adjustable Eye Assembly from Buyers Products allows you to adjust the position of a tow eye for level towing. It comes with a ductile cast iron eye (3 in. interior diameter) and a 3 or 5 position formed steel channel bracket.

Simply bolt the eye into the channel bracket at the position that fits your needs, and connect to the pintle hook on your truck. Fasteners are included.

The 5 channel bracket comes with gussets that you can weld on for even greater support.

Both the 3 and 5 position models will handling a maximum gross towing weight of 12,000 lb.

91.54 91.54 USD 91.54

123.70


    This combination does not exist.

    Add to Cart


    Share this product:


    • Structural steel construction with zinc prime & powder coated finish
    • interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
    • Interior height is 72″ high
    • Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
    • Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
    • Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
    • Rear corner posts are constructed of 7GA steel
    • Roofs are constructed of 12GA steel with a 6″ peak
    • Lockable security-style doors with 3″ x 3″ supports
    • Standard 6″ steel ground rollers
