Hilltip Spraystriker M130

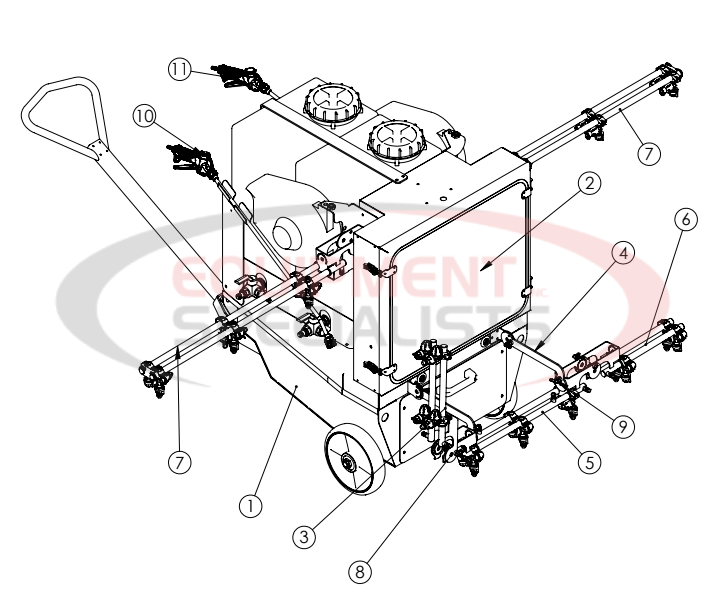

Hilltip Spraystriker M130 Breakdown Diagram
2
3
4
5
6

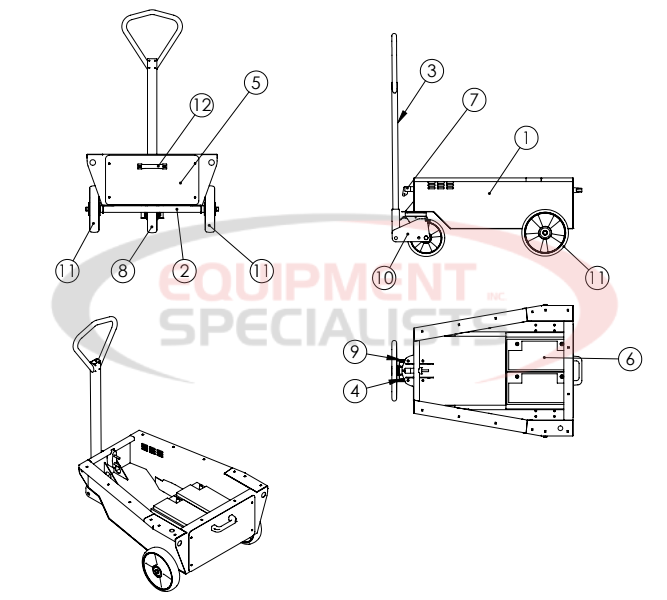

Hilltip Spraystriker M130 Cart Preassembly Diagram
Hilltip Spraystriker M130 Cart Preassembly Diagram Breakdown Diagram
12
4
7

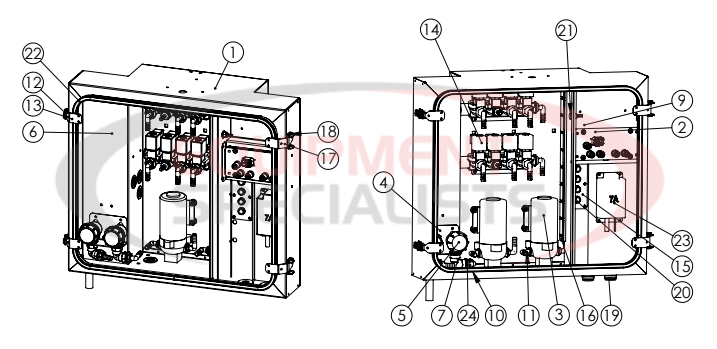

Hilltip Spraystriker Preassembled Pump Cabinet Diagram
Hilltip Spraystriker Preassembled Pump Cabinet Diagram Breakdown Diagram
1
12
13
14
16
17
18
2
20
21
24
3
4
5
6
7
9

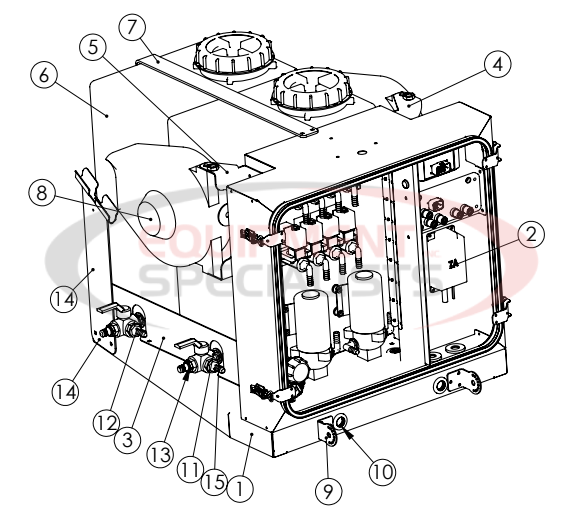

Hilltip Spraystriker Tank and Cabinet Preassembled Diagram
Hilltip Spraystriker Tank and Cabinet Preassembled Diagram Breakdown Diagram
11
12
4
8
9

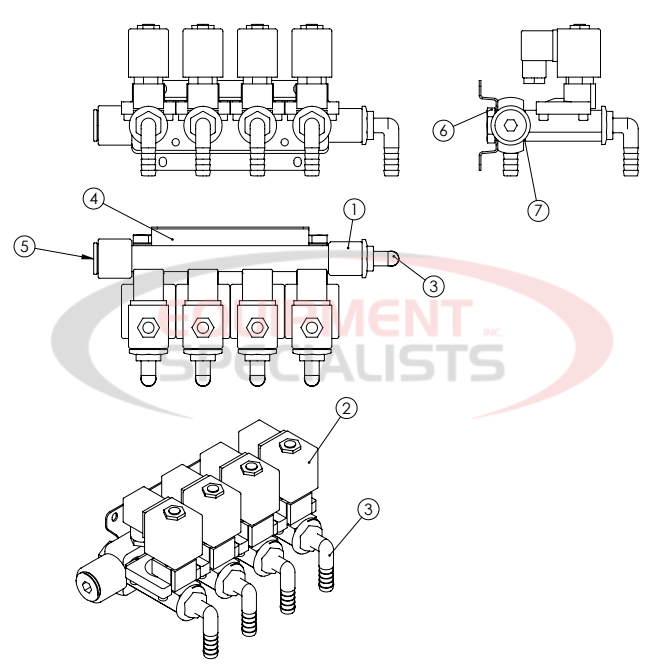

Hilltip Spraystriker Valve Assembly 4X12VDC Diagram
Hilltip Spraystriker Valve Assembly 4X12VDC Diagram Breakdown Diagram
2
3
4
5
6

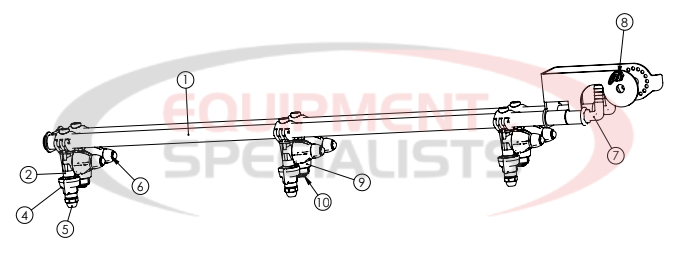

Hilltip Spraystriker Middle Spraybar Preassembled Diagram
Hilltip Spraystriker Middle Spraybar Preassembled Diagram Breakdown Diagram
1
2
4
6

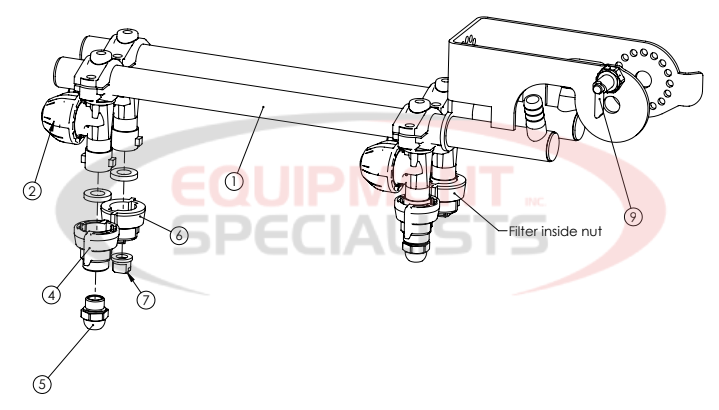

Hilltip Short Side Spraybar Preassembled Diagram
Hilltip Short Side Spraybar Preassembled Diagram Breakdown Diagram
1
2
4
6

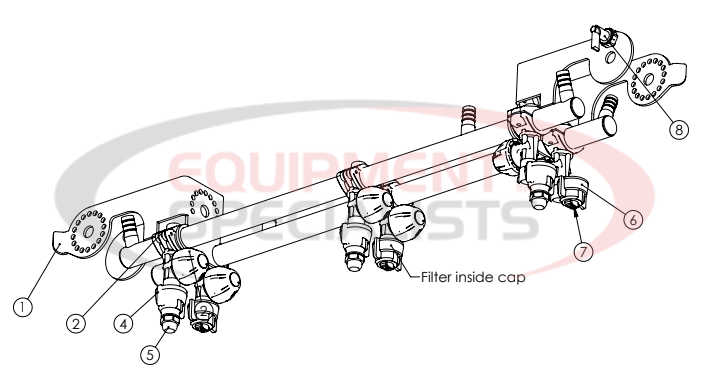

Hilltip Long Side Spraybar Spraystriker Pre-Assembled Diagram
Hilltip Long Side Spraybar Spraystriker Pre-Assembled Diagram Breakdown Diagram
1
2
4
9
Hilltip Brinemixx Brine Blender Parts Diagram
Hilltip Brinemixx Brine Blender Parts Diagram Breakdown Diagram
15
16
18
2
3
4
5
6
7
Hilltip Brinemixx Blender Tank and Cover Grid Parts Diagram
Hilltip Brinemixx Blender Tank and Cover Grid Parts Diagram Breakdown Diagram
1
