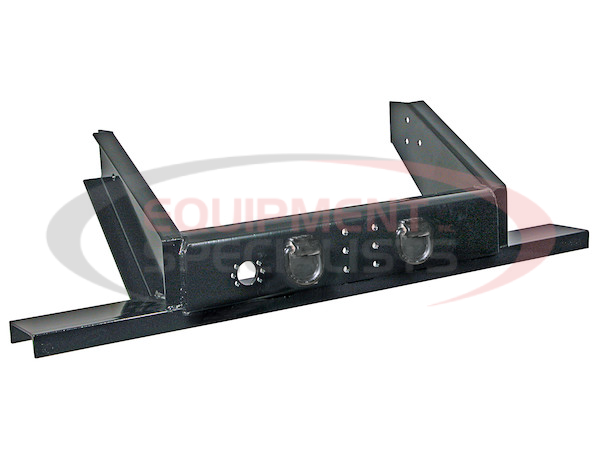

FLATBED/FLATBED DUMP HITCH PLATE BUMPER FOR PINTLE MOUNT
1809050
Specially designed for flatbeds and flatbed dump trucks.
For use with cab and chassis trucks with a nominal 34 in. frame width.
Pre-fabricated for easy installation.
Corrosion-resistant powder coating.
Provides ICC bumper protection.

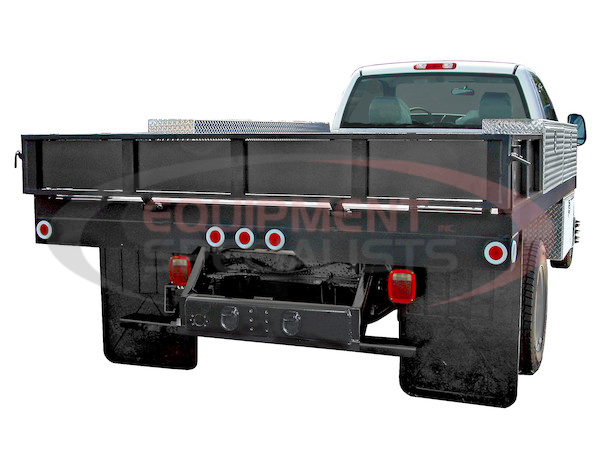

This flatbed hitch plate bumper from Buyers Products is designed to accommodate the longer overhang of flatbeds and flatbed dump trucks, while still providing ICC bumper protection. It will handle towing weights up to 20,000 lb.
This versatile product offers a 2 position pintle hook mount for a range of height adjustment. It also includes two forged D-rings for safety chains and a pre-punched hole that fits standard electrical connectors. Its black powder coating is corrosion-resistant.
The bumper is ready to mount on Ford F-350, F-450 and F-550 trucks cab and chassis trucks with a nominal 34 in. frame width, while drilling is required for GM trucks. It should be both welded and bolted to the frame.
Product Common Use: Towing, Flatbed Trucks, Flatbed Dump Trucks
Share this product:
- Structural steel construction with zinc prime & powder coated finish
- interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
- Interior height is 72″ high
- Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
- Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
- Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
- Rear corner posts are constructed of 7GA steel
- Roofs are constructed of 12GA steel with a 6″ peak
- Lockable security-style doors with 3″ x 3″ supports
- Standard 6″ steel ground rollers
